產品特色

1. 維持工具機主軸溫度

2. 提升工具機加工精度

3. 穩定工具機油溫油壓

4. .延長工具機使用壽命


應用範圍

1. CNC綜合加工機

2. CNC磨床、拉床、高速車床、沖床

3. 油壓系統

4. 高速主軸


Feature

1. Prevent temperature increasing of spindle.
2. Improve working precision of machine.
3. Stabilize oil temp. and pressure of machine.
4. Extend the life time of machine.


Application

1. CNC machine center
2. CNC grinding machine, broaching machine, high speed lathe, punch
3. Hydraulic system
4. High speed spindle

♦ 油冷卻機配電圖

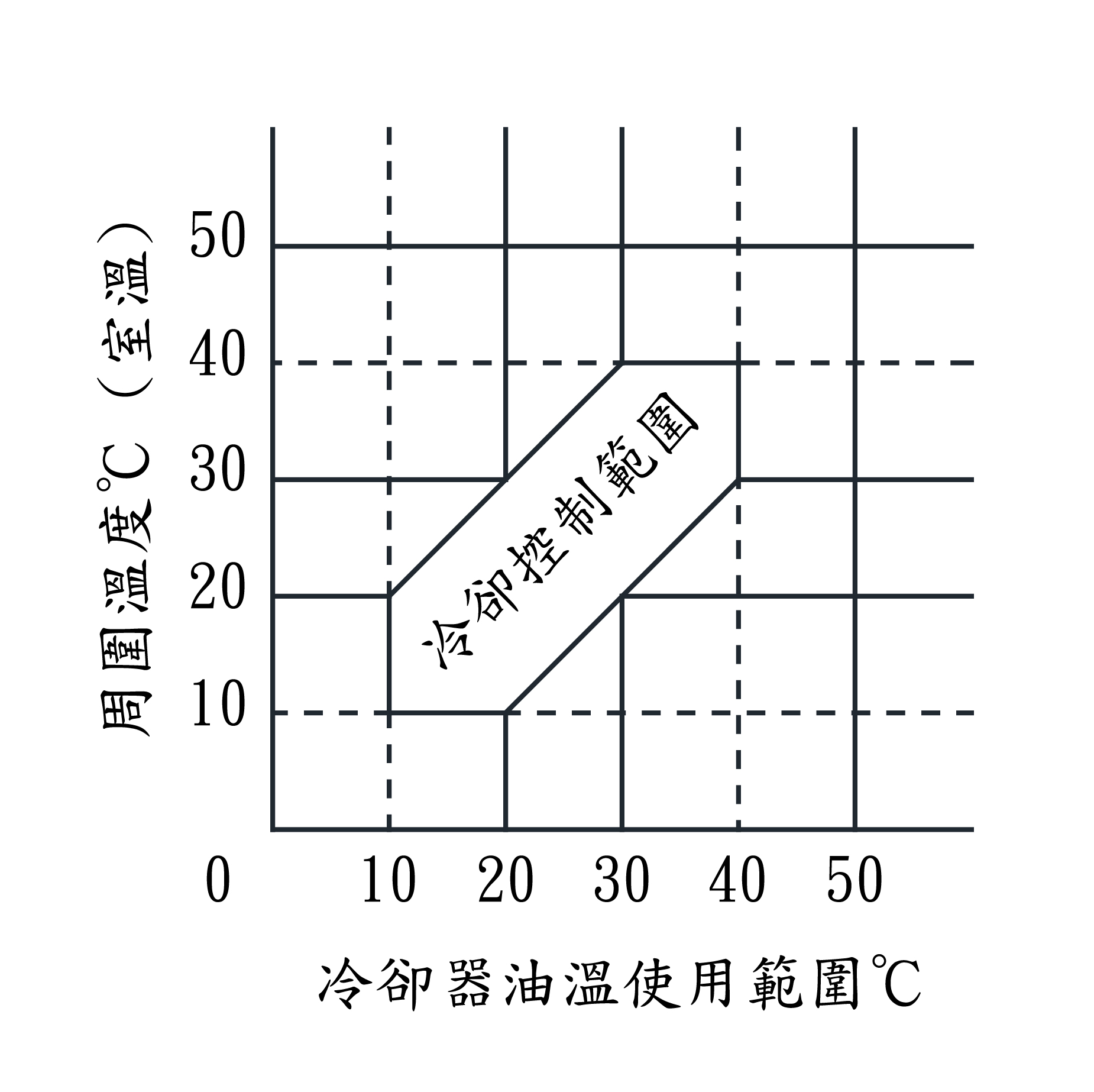

♦ 冷卻器使用油溫範圍

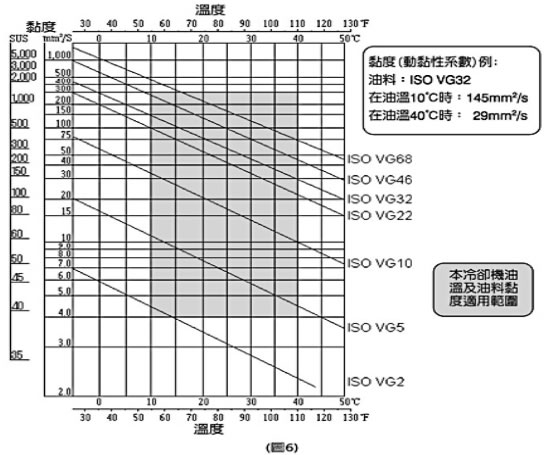

♦ 油品黏度與溫度變化

♦ 油冷卻機三視圖及尺寸

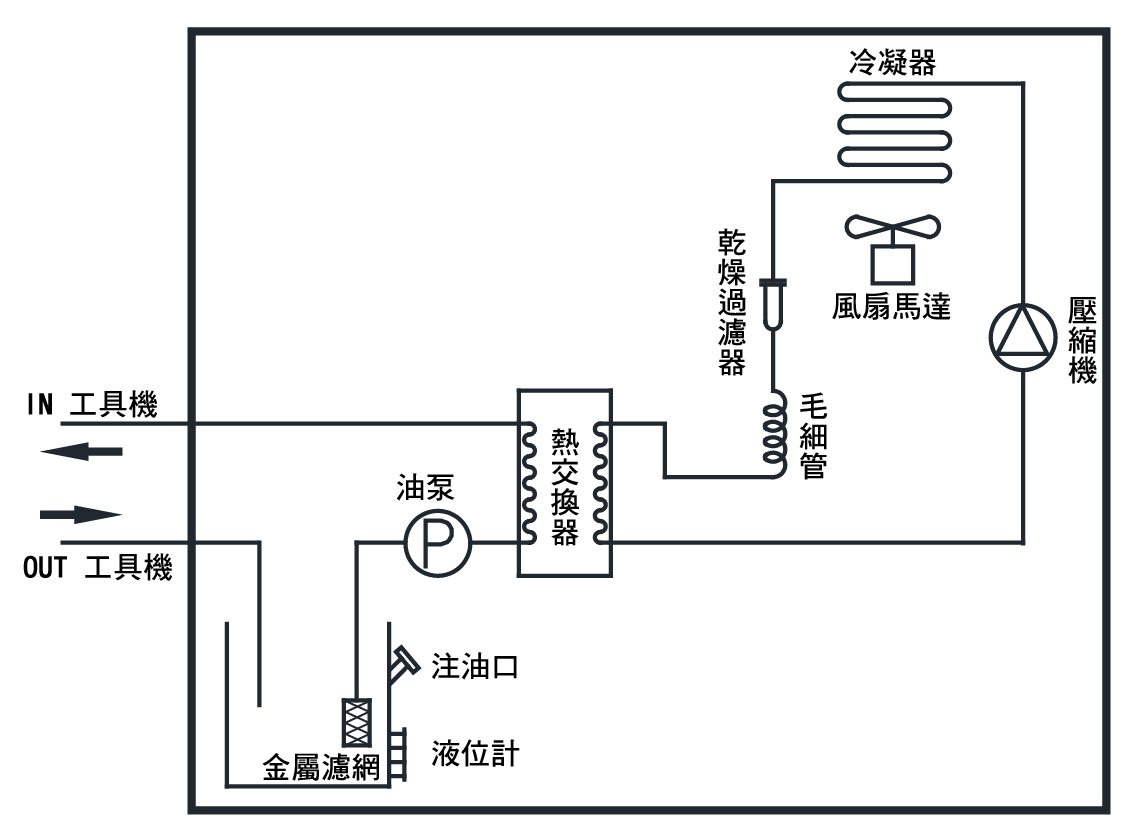

♦ 系統流程圖

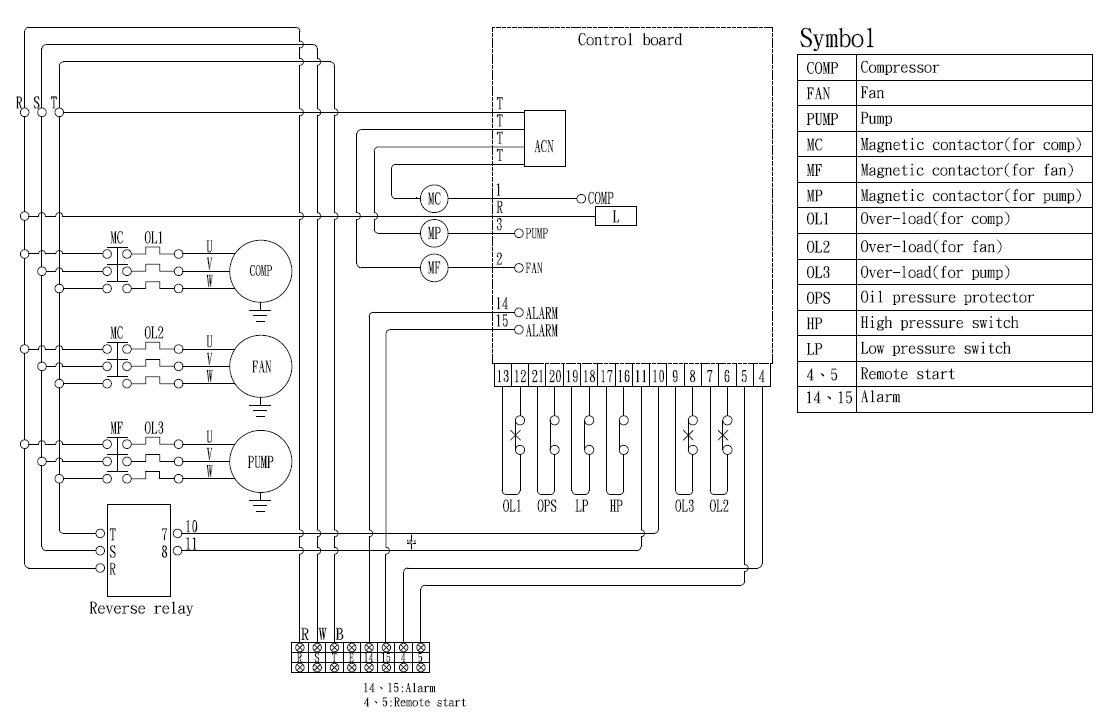

♦ Wiring diagram

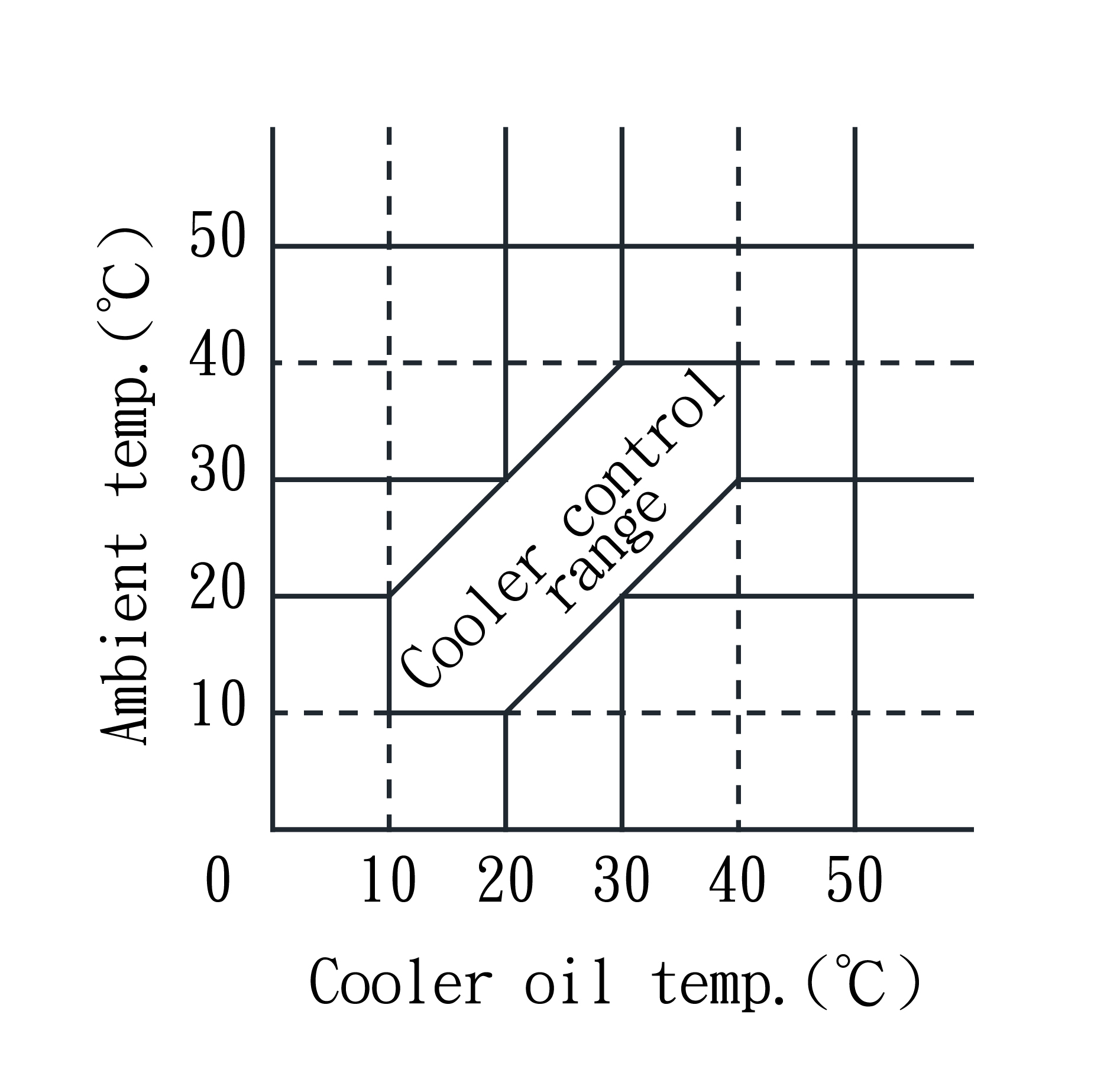

♦ Oil temperature using range

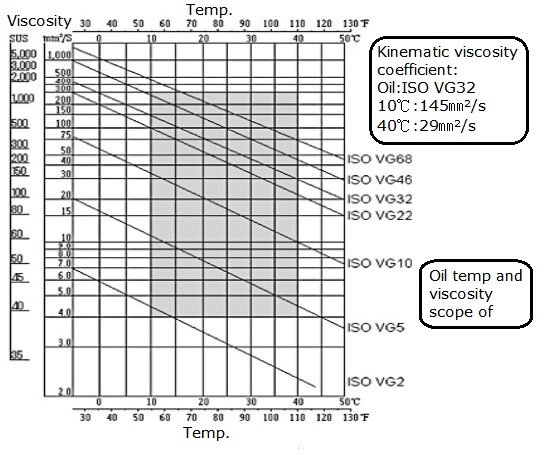

♦ Oil viscosity and temperature change

♦ Three view drawing and dimension

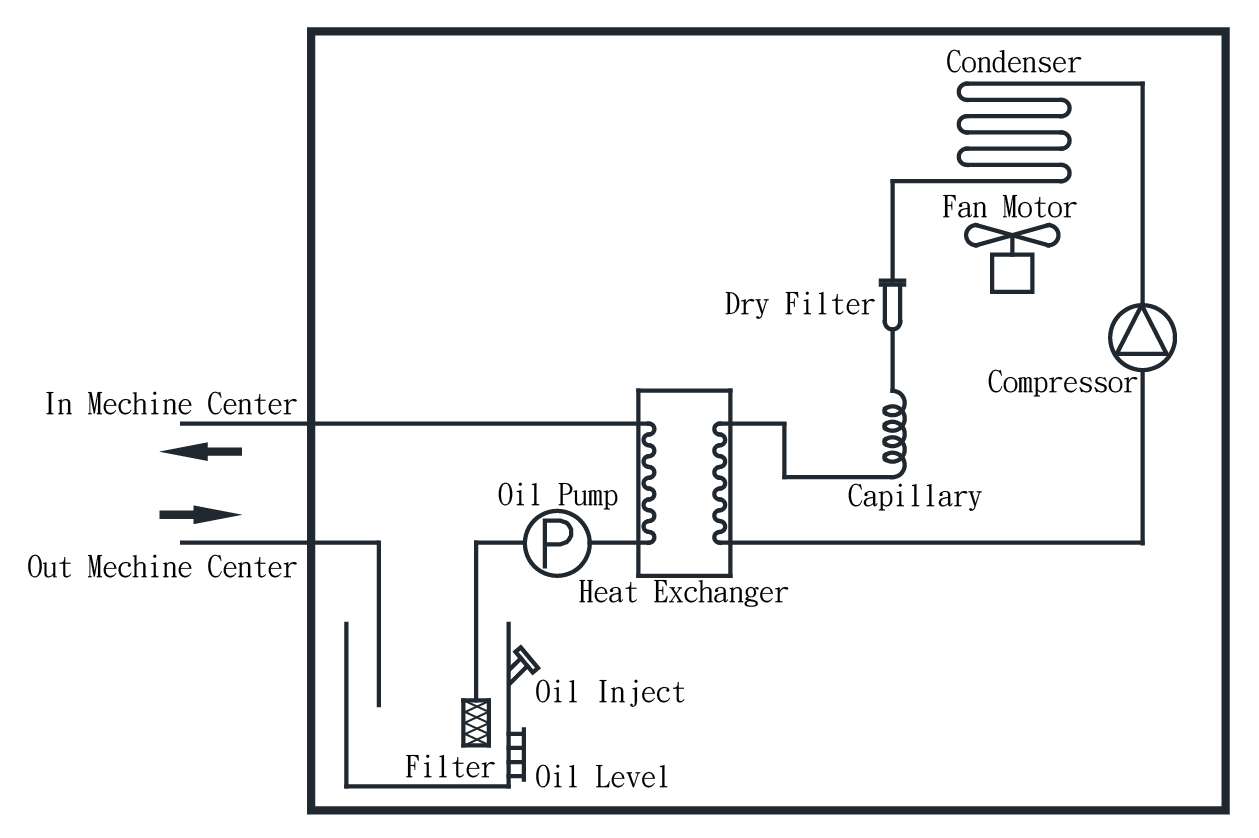

♦ System flow chart

♦ 安裝、操作、保養手冊

♦ 故障檢知表

♦ 油冷卻機機種選查表

♦ Oil Cooling Unit model selection checklist
